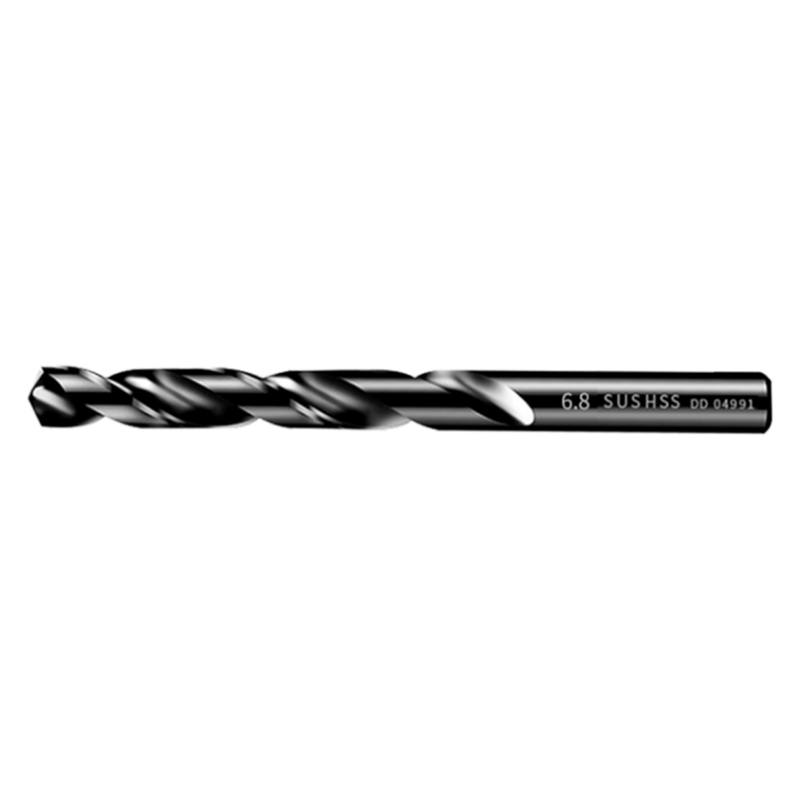

özellikler : D5.5-D10.4 Malzeme: Toz yüksek hız çeliği malzemesi | ||||
modeli | boyut | |||
çapD1 | etkili uzunlukH | Toplam uzunluk L | Pedinküler meridyenD | |
D5.5-28H-D6-72L | 5.5 | 28 | 72 | 6 |
D5.6-28H-D6-72L | 5.6 | 28 | 72 | 6 |
D5.7-28H-D6-72L | 5.7 | 28 | 72 | 6 |
D5.8-28H-D6-72L | 5.8 | 28 | 72 | 6 |
D5.9-28H-D6-72L | 5.9 | 28 | 72 | 6 |
D6.0-28H-D6-72L | 6 | 28 | 72 | 6 |
D6.1-31H-D8-75L | 6.1 | 31 | 75 | 8 |
D6.2-31H-D8-75L | 6.2 | 31 | 75 | 8 |
D6.3-31H-D8-75L | 6.3 | 31 | 75 | 8 |
D6.4-31H-D8-75L | 6.4 | 31 | 75 | 8 |
D6.5-31H-D8-75L | 6.5 | 31 | 75 | 8 |
D6.6-31H-D8-75L | 6.6 | 31 | 75 | 8 |
D6.7-31H-D8-75L | 6.7 | 31 | 75 | 8 |
D6.8-34H-D8-78L | 6.8 | 34 | 78 | 8 |
D6.9-34H-D8-78L | 6.9 | 34 | 78 | 8 |
D7.0-34H-D8-78L | 7 | 34 | 78 | 8 |
D7.1-34H-D8-78L | 7.1 | 34 | 78 | 8 |
D7.2-34H-D8-78L | 7.2 | 34 | 78 | 8 |
D7.3-34H-D8-78L | 7.3 | 34 | 78 | 8 |
D7.4-34H-D8-78L | 7.4 | 34 | 78 | 8 |
D7.5-34H-D8-78L | 7.5 | 34 | 78 | 8 |
D7.6-37H-D8-81L | 7.6 | 37 | 81 | 8 |
D7.7-37H-D8-81L | 7.7 | 37 | 81 | 8 |
D7.8-37H-D8-81L | 7.8 | 37 | 81 | 8 |
D7.9-37H-D8-81L | 7.9 | 37 | 81 | 8 |
D8.0-37H-D8-81L | 8 | 37 | 81 | 8 |
D8.1-37H-D10-87L | 8.1 | 37 | 87 | 10 |
D8.2-37H-D10-87L | 8.2 | 37 | 87 | 10 |
D8.3-37H-D10-87L | 8.3 | 37 | 87 | 10 |
D8.4-37H-D10-87L | 8.4 | 37 | 87 | 10 |
D8.5-37H-D10-87L | 8.5 | 37 | 87 | 10 |
D8.6-40H-D10-90L | 8.6 | 40 | 90 | 10 |
D8.7-40H-D10-90L | 8.7 | 40 | 90 | 10 |
D8.8-40H-D10-90L | 8.8 | 40 | 90 | 10 |
D8.9-40H-D10-90L | 8.9 | 40 | 90 | 10 |
D9.0-40H-D10-90L | 9 | 40 | 90 | 10 |
D9.1-40H-D10-90L | 9.1 | 40 | 90 | 10 |
D9.2-40H-D10-90L | 9.2 | 40 | 90 | 10 |
D9.3-40H-D10-90L | 9.3 | 40 | 90 | 10 |
D9.4-40H-D10-90L | 9.4 | 40 | 90 | 10 |
D9.5-40H-D10-90L | 9.5 | 40 | 90 | 10 |
D9.6-43H-D10-93L | 9.6 | 43 | 93 | 10 |
D9.7-43H-D10-93L | 9.7 | 43 | 93 | 10 |
D9.8-43H-D10-93L | 9.8 | 43 | 93 | 10 |
D9.9-43H-D10-93L | 9.9 | 43 | 93 | 10 |
D10.0-43H-D10-93L | 10 | 43 | 93 | 10 |
D10.1-43H-D12-100L | 10.1 | 43 | 100 | 12 |
D10.2-43H-D12-100L | 10.2 | 43 | 100 | 12 |
D10.3-43H-D12-100L | 10.3 | 43 | 100 | 12 |
D10.4-43H-D12-100L | 10.4 | 43 | 100 | 12 |
